Ansys Fluent Meshing
Lo strumento più versatile per la generazione della griglia di calcolo
Ansys è un prodotto Ansys Inc.
Ansys è un prodotto Ansys Inc.
Il processo di meshatura può spesso diventare un collo di bottiglia all’interno del flusso di lavoro.
L’offerta Ansys mette a disposizione numerosi strumenti per la generazione della griglia di calcolo.
Tra questi Ansys Fluent Meshing rappresenta lo strumento più versatile e all’avanguardia. Attraverso un workflow pre-impostato ed automatizzato,
l’utente può scegliere la procedura più adatta in base alla propria geometria, ma può anche personalizzare il processo grazie a strumenti avanzati e di dettaglio.
In ogni passaggio all’interno di questo workflow, vengono visualizzate solo le opzioni più rilevanti per snellire le operazioni e vengono impostati in automatico i parametri attinenti alla geometria in esame.

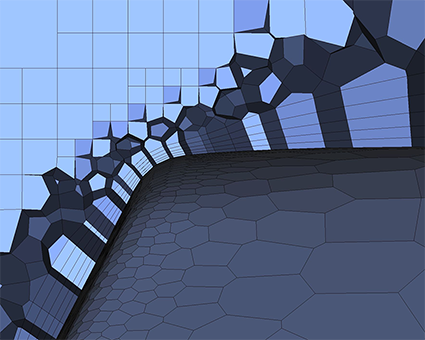

È possibile gestire geometrie sia semplici che complesse, applicando diversi metodi di meshatura che possono sfruttare prismi, tetraedri, esaedri e poliedri. Tra questi, la tecnica della meshatura a mosaico (Mosaic Meshing) è un ulteriore elemento innovativo, che combina prismi, poliedri ed esaedri per ottimizzare la qualità della mesh, il numero di elementi della griglia e di conseguenza i tempi di calcolo e l’accuratezza della soluzione.
