Flownex is a design tool for fluid network. It allows a fast and accurate CFD analyses of a plant because it defines components through lumped parameters and connects them in a thermo-fluid network.

Flownex SE calculates the variation of pressure drop, mass flow, temperature and heat transfer for each component of the system (pumps, compressors, turbines, pipes, valves, tanks, heat exchangers) to extensively examine all possible design and optimization choices.

Flownex SE simulates any dynamic scenarios with pressure and mass flow waves, system start-up and shut-down, control loops and safety procedures.

Flownex is developed in an ISO 9001:2008 and NQA1 quality assurance system environment: it is the only software of its kind to hold a nuclear accreditation, a testament to the quality, reliability and accuracy of this simulation software.

Flownex SE applies to all industrial sectors which deal with gas or liquid transportation in a plant: HVAC, Hydraulics, Renewable Energy, Power Generation, Turbo-machinery and Nuclear.

Flownex is a design tool for fluid network

Flownex® is a product of M-Tech Industrial (Pty) Ltd

Flownex

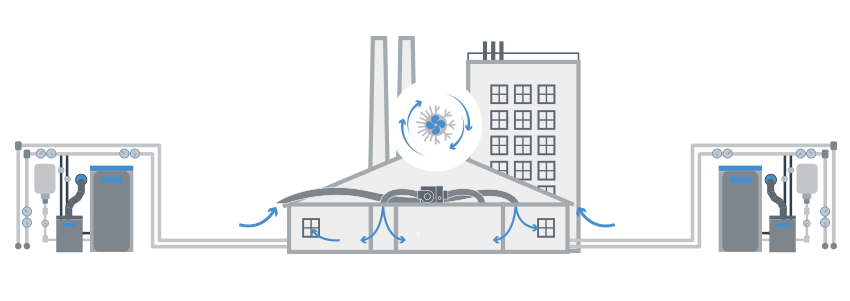

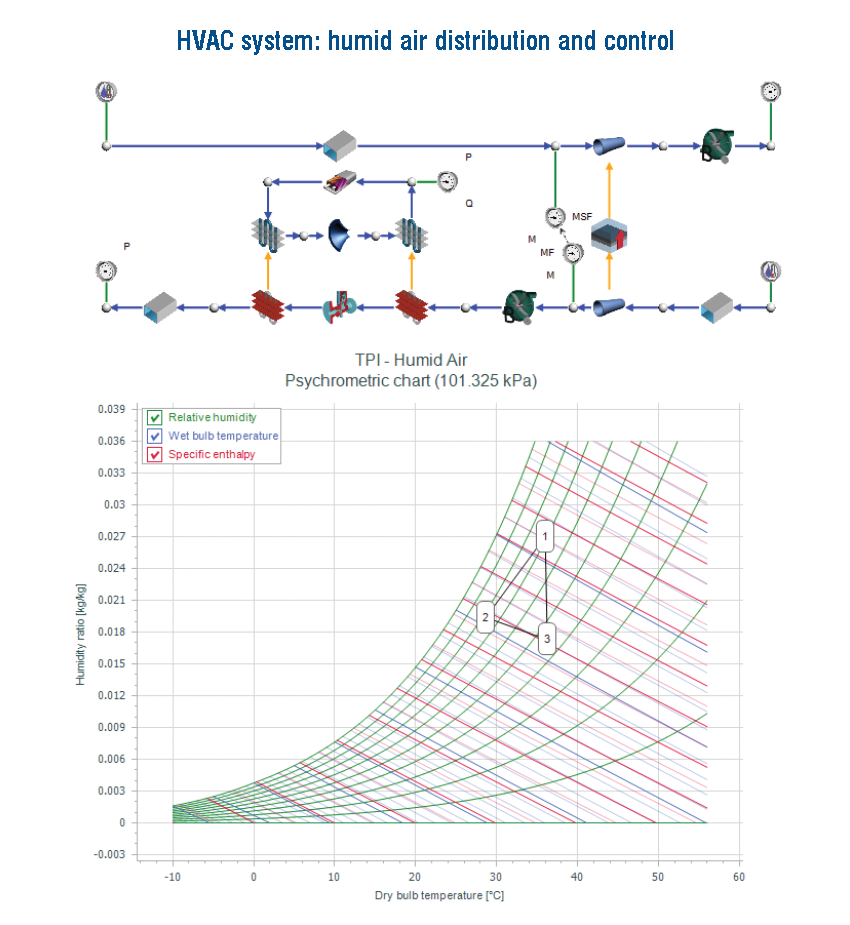

HVAC system: humid air distribution and control

Hydraulic system: simulation of water hammer, pressure waves and pump trip


Hydraulic system: simulation of water hammer, pressure waves and pump trip

Main Benefits

   Simulates every size of plants and fluid circuits from sub-systems to complete systems

   Calculates variations of pressure, mass flow, heat flux and forces

   Advanced CFD phenomena: chocked-flow, cavitation, boiling, condensation and flashing

   Transient scenario with the integration control loop

   Engineering design analyses to size pipes, pumps, valves, heat exchangers and orifices

   Co-simulation through FMI interface for predictive maintenance

   Integrated GUI to manage the entire plant

   Few seconds to get simulation results
