The fully integrated 3D tolerance analysis software tool

CETOL 6σ

Cetol 6σ is a product of Sigmetrix LLC.

The fully integrated 3D tolerance analysis software tool provides the invaluable insight needed to confidently release designs for manufacture and inform the selection of appropriate tolerances to achieve your variation goals efficiently. Fixing assembly problems late in the design chain or avoiding them long before production, all while saving money.

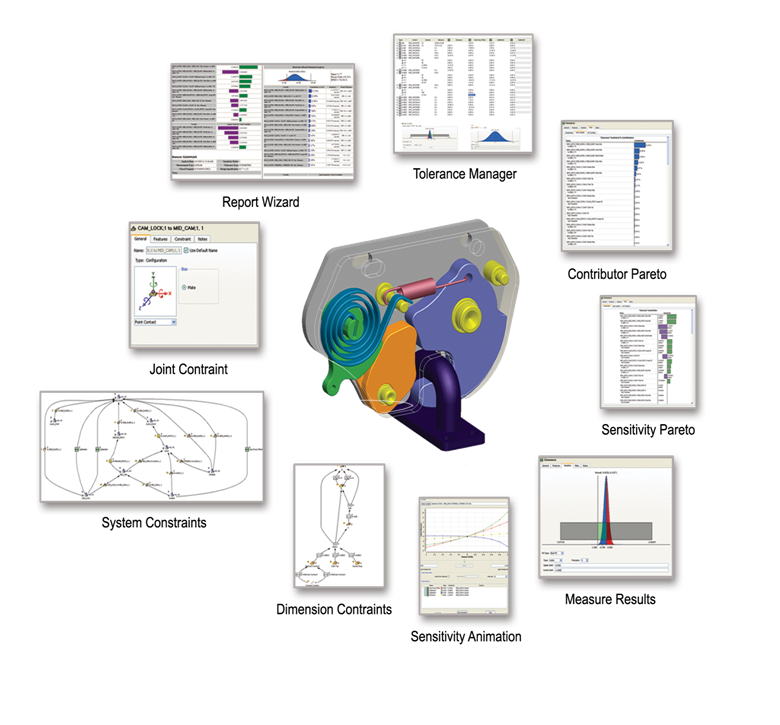

CETOL 6σ enables designers and engineers to easily address multi-dimensional problems, using their native CAD geometry. This unique method allows you to receive immediate analytical feedback, utilising the easy-to-use modelling, analysis and reporting components. The user is guided through the tolerance analysis and optimisation process whilst being informed about missing or erroneous data.

Unlike simple 1D stack-up analysis or Monte Carlo Simulation, CETOL 6σ pursues a statistical approach employing advanced precise constraint technology, displayed in an intuitive graphical user interface. This approach accelerates the ability to identify and illustrate dimensional sensitivities and the tolerances that have the most significant contribution to your variation.

Discovering the critical-to-quality features to control has never been easier.

Cetol 6σ - The fully intergrated 3D tolerance analysis software tool

Main benefits

Request a free demo

  Achieve maximum productivity

  Improve product quality

  Accelerate product maturity

  Optimise design & manufacturing goals

  Identify critical parts in assemblies

  Reduce scrappage and warranty claims

  Reduce manufacturing cost

  Reduce modelling time

  Communicate results efficiently

  Quickly auto-report results
