Ansys EnSight
Lo strumento di punta per l’analisi, visualizzazione e condivisione dei dati provenienti da simulazioni multifisiche
Ansys è un prodotto Ansys Inc.
Ansys è un prodotto Ansys Inc.
Per l’analisi e visualizzazione dei risultati, si possono sfruttare diversi strumenti all’interno del mondo Ansys, associati eventualmente al solutore utilizzato. La piattaforma general-purpose in questo caso è Ansys EnSight, lo strumento di punta per l’analisi, visualizzazione e condivisione dei dati provenienti da simulazioni multifisiche.

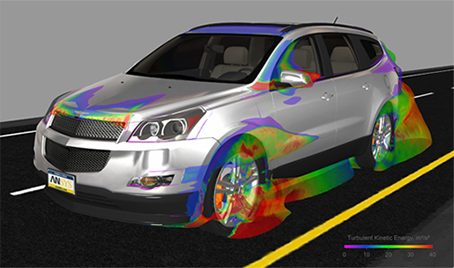

È un post-processore molto potente, con un rendering elevato, in grado di leggere fino a 32 modelli in contemporanea all’interno della stessa sessione, provenienti da qualsiasi disciplina del mondo CAE.
È lo strumento ideale per la comparazione dei risultati tra diversi solutori o tra diverse configurazioni, specialmente per le analisi CFD,
interazione fluido-struttura e processi di ottimizzazione.
Si può sfruttare anche la sua versione in parallelo che consente di gestire,
attraverso un cluster, modelli particolarmente grandi e pesanti.
Fluids
Structures
Electronics Suite
Platform
3D Design
Materials
Optical
Systems and Safety
Invia le tue domande ai nostri tecnici specializzati!
Mettiti in contatto con uno dei nostri esperti, che ti potrà fornire risposte certe o consigliare soluzioni affidabili.
